        1. Two Dimensional Mixer

          Two Dimensional Mixer

          Working Principle of the Two Dimensional Mixer

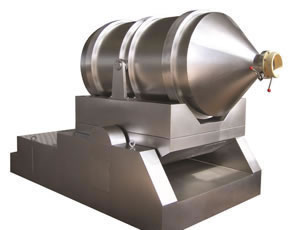

          The EYH Series two dimensional mixer mainly consists of a rotating cylinder, swing support, and frame. The rotating cylinder lies on the swing support, supported by four wheels and its axial orientation via two catch wheels. Two of the four wheels are driven by the rotating power system to make the cylinder rotate. The two dimensional mixer swing support is driven by a crank swing stem structure which is mounted on the frame and the swing support is supported on the frame by the bearing parts.

          Features
          The rotating cylinder of EYH Two Dimensional Mixer can make two motions at the same time. One is the rotation of the cylinder itself, another is the swinging along with the swing support. Materials in the cylinder moves with the cylinder's rotation, turning and mixing, while also moving side to side. As a result, materials can be mixed fully in a short time. So this model is suitable for mixing of any powdered or granular materials.

          Technical Parameter of the Two Dimensional Mixer
          Specification Barrel volume (L) Load Volume (L) Max Load (kg/batch) Swing/rotate Speed (r/min) Total motor Power (kW) Overall dimension X*Y*Z*Z1 (mm) Total Weight (kg) Barrel Weight (kg)
          EYH-600 600 360 150 6.5/12.1 1.1/1.5 1200*2200*2050*1900 1150 140
          EYH-800 800 480 200 6.18/11.6 1.5/1.5 1400*2700*2230*1930 1600 200
          EYH-1000A 1000 600 250 5.28/10.87 1.5/1.5 1450*2850*2300*2000 1700 240
          EYH-1500A 1500 900 375 4.13/8.45 2.2/3 1720*3170*2450*2100 2000 320
          EYH-2000A 2000 1200 500 4.1/7.6 3/4 1820*3600*2650*2300 2600 430
          EYH-3000A 3000 1800 750 3.68/6.83 4/5.5 2070*3700*3150*2800 3500 620
          EYH-4000A 4000 2400 1000 3.46/6.8 5.5/7.5 2200*3900*3250*2900 4100 700
          EYH-6000A 6000 3600 1500 3.31/6.74 7.5/11 2500*4500*3350*3000 6100 1100
          EYH-8000A 8000 4800 2000 3.2/6.4 11/11 2700*4800*3650*3200 7900 1450
          EYH-10000A 10000 6000 2500 3.15/6.2 11/15 2900*5050*3750*3300 9500 1650
          EYH-12000A 12000 7200 3000 3.1/5.9 15/18.5 3150*5300*4000*3500 10000 1800
          EYH-15000A 15000 9000 3750 2.9/5.3 18.5/22 3350*5600*4350*3850 11000 2000
          EYH-20000A 20000 12000 5000 2.8/4.5 22/30 3600*9100*4850*4450 12000 2500

          Typical customer
          AKSI COMPANY (Ukraine)
          ALWIS-KMA (Syria)

          As an experienced two dimensional mixer manufacturer and supplier in China, Xianfeng Drying also provides a slot mixer, circle vibrate sieve, revolving vacuum drying equipment, high speed mixing granulator, and more.

          Related Names
          Two Dimensional Mingling Device | Planar Compounding Equipment | Plane Mixing Facility | Tabulate Blending Machine
