        1. V Model Mixer

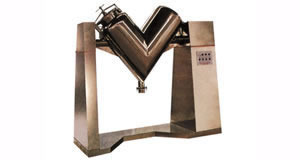

          V Model Mixer

          Application and Features of the V Model Mixer
          The V model mixer is used for mixing dry powder/granule material with fluidity.
          It is made up of two asymmetric chambers. The material in chamber can make a vertical and horizontal motion to reach a uniform mixing effect over 99%.
          The V model mixer operation is performed in a totally sealed condition, with no transmission device in the mixing chamber, thus there is no dead angle, which ensures clean operating conditions, and meets GMP requirements. It can also be equipped with a vacuum feeding system, if the customer desires.



          Technical Parameter of the V Model Mixer
          Model Total Volume (m3) Load Volume (L) A B C D E F G H Rotate Speed (rpm) Motor Power (kW) Total Weight (kg) Vacuum pump model
          Length (mm) Width (mm) Height Of center (mm) Inlet Dia (mm) Outlet Dia (mm) Outlet Height (mm) Rotate Height (mm) Rotate Dia (mm)
          VH-0.3 0.3 120 2220 900 1470 ¢ 300 ¢ 100 750 2290 ¢ 1540 15 1.5 350 W2
          VH-0.5 0.5 200 2400 950 1510 ¢ 300 ¢ 150 750 2370 ¢ 1620 15 1.5 550 W2 or SK-1.5
          VH-1.0 1.0 400 2800 1000 1660 ¢ 400 ¢ 150 750 2580 ¢ 2130 12 3.0 1000 W3 or SK-3
          VH-1.5 1.5 600 3000 1100 1750 ¢ 400 ¢ 200 750 2580 ¢ 2400 10 4.0 1100 W3 or SK-3
          VH-2.0 2.0 800 3200 1200 2000 ¢ 400 ¢ 200 750 3350 ¢ 2500 10 5.5 1500 W3 or SK-3
          VH-2.5 2.5 1000 3400 1300 2140 ¢ 400 ¢ 200 750 3800 ¢ 2880 8 7.5 1700 W4 or SK-6
          VH-3.0 3.0 1200 3600 1400 2200 ¢ 400 ¢ 200 750 3850 ¢ 3000 6 7.5 1800 W5 or SK-9

          Xianfeng Drying is a specialized V model mixer manufacturer in China. In addition, we provide a high speed mixer, centrifugal atomizing drying equipment, circle vibrate sieve, fluid bed granulator, and more.
